Monsoon banner display system

monsoon banner display system.

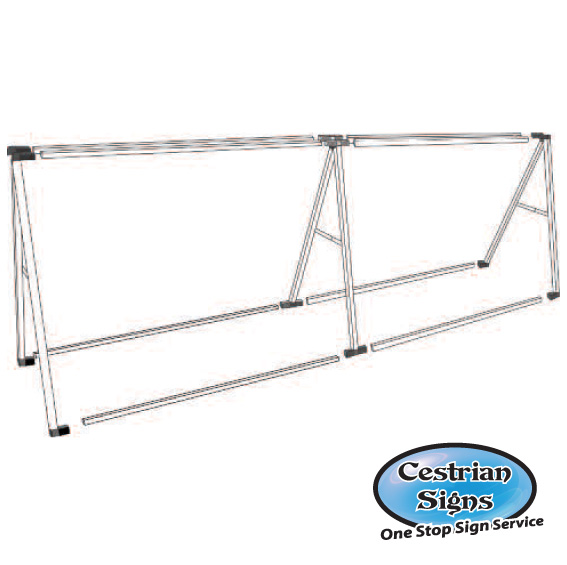

A large format banner ‘A’ frame made from lightweight aluminium, ideal for use with PVC eyelet banners.

Available in two sizes Monsoon is very easy to use, reusable and is the perfect graphics carrier
for venues, events, exhibitions, promotions and indoor or outdoor shows.

features & benefits

• Indoor or outdoor banner system  • Suitable for single or double sided display

• 2 frame sizes 1000mm x 2500mm and 1250mm x 3000mm   • Extension kits available
• Natural finish 25mm (1”) square aluminium tubes with reinforced plastic mouldings

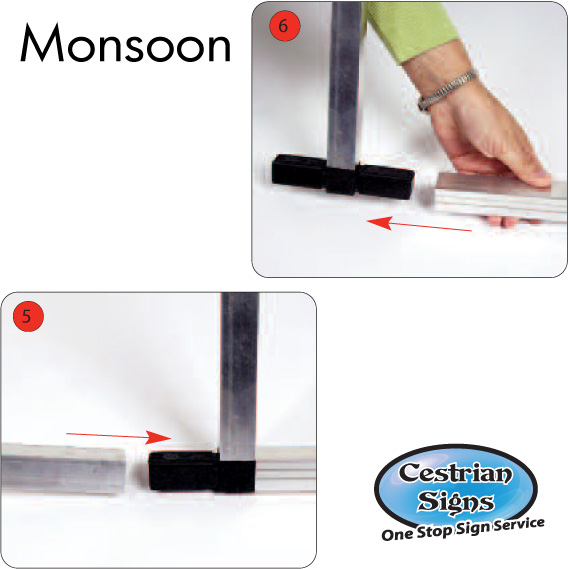

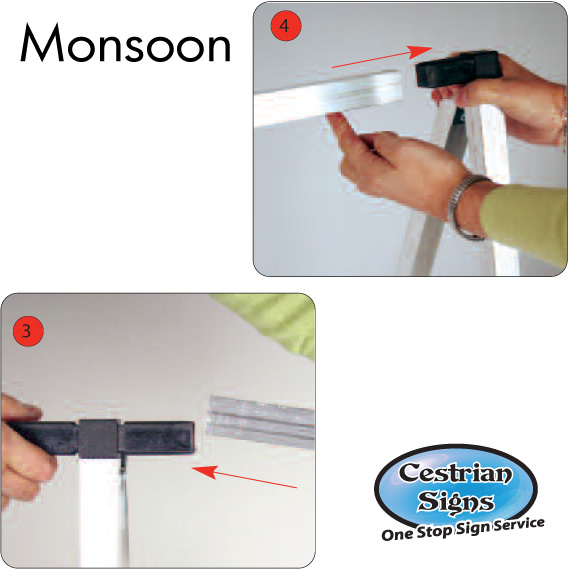

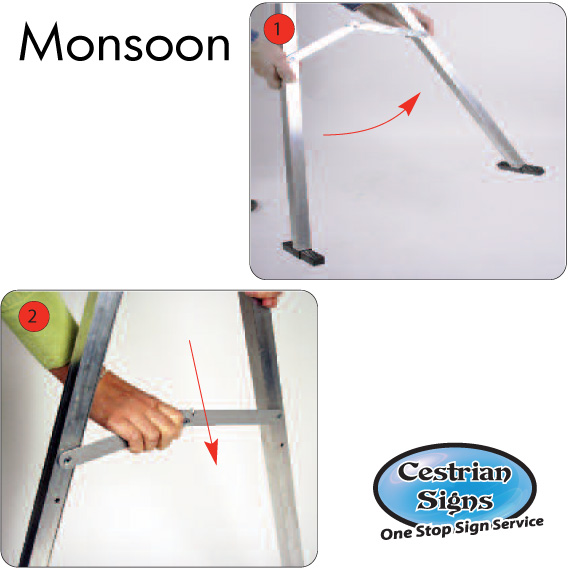

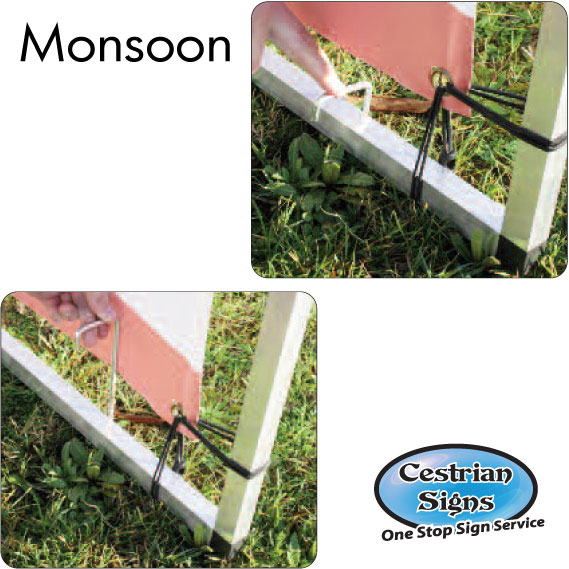

• Easy push-fit assembly, no tools necessary  • Graphics are secured to the frame with elastic bungee cords

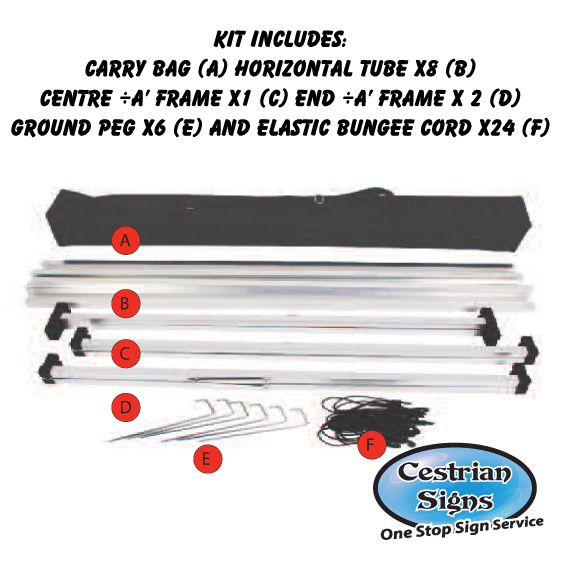

• Supplied complete carry bag • Flat packs for easy transportation
• Recommended for use in wind conditions upto Beaufort Scale 5

hardware specifications

Assembled Dimensions (mm)
1000 x 2500 frame  975 (h) x 2500 (w) x 640 (d) approx 38.39” (h) x 98.43” (w) x 25.20” (d) approx
1250 x 3000 frame 1200 (h) x 3000 (w) x 795 (d) approx 47.24” (h) x 118.11” (w) x 31.30” (d) approx
Weight (including carry bag & 2 banners)
1000 x 2500 frame   9.5kg  (19.6lbs) approx.
1250 x 3000 frame 10.5kg  (21.8lbs) approx.

Recommended graphic area :

2340mm x 840mm or 2840mm x 1090mm
