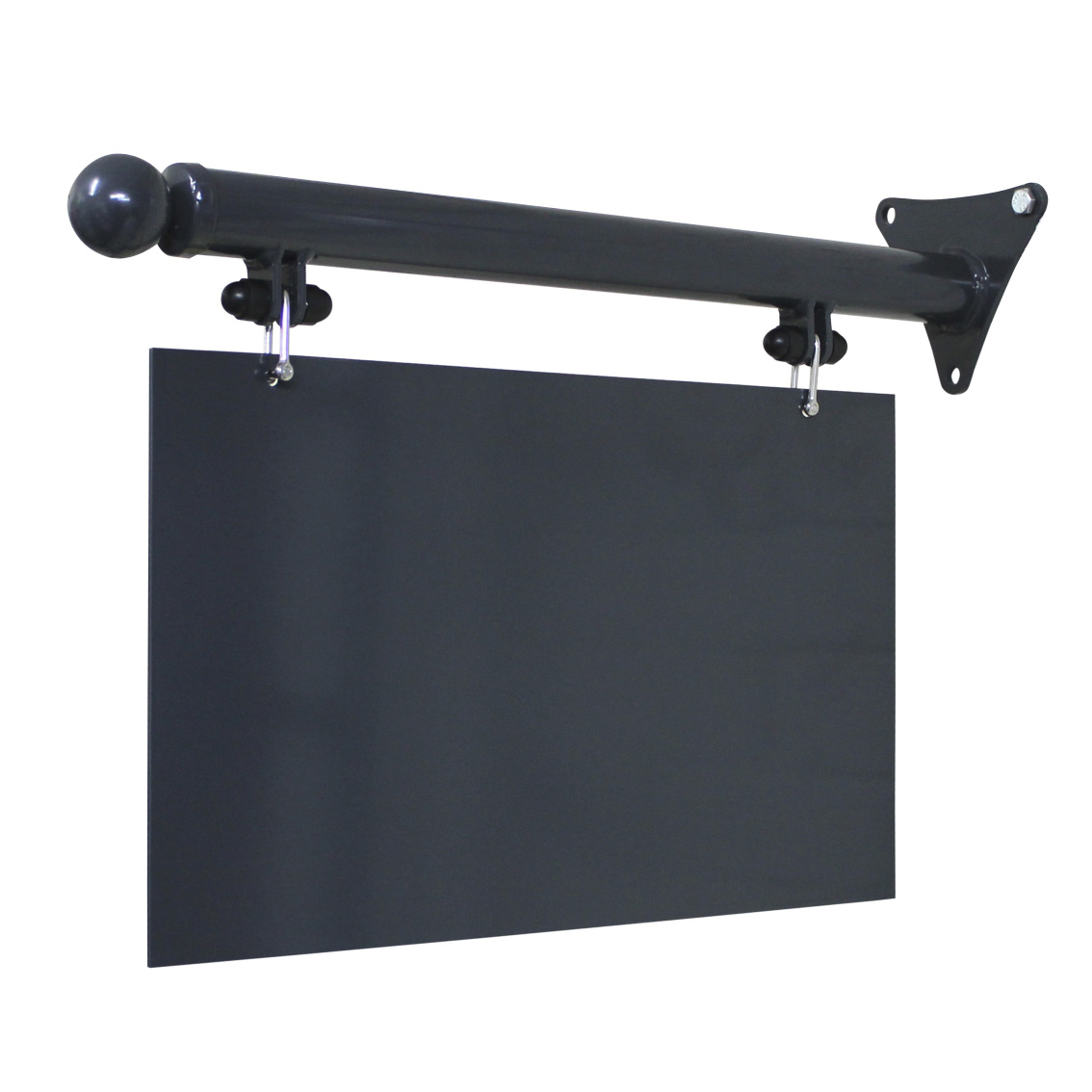

Hanging Projecting Shop Sign Bracket 1 600mm

Hanging Projecting Shop Sign Bracket 1 600 mm. This is a standard sign bracket it is our most simple shop sign bracket, This Hanging Shop Sign can be fully customised with printed signs.

Sign Shape and Size

Our hanging sign panels are manufactured from 25 mm thick high impact PVC.

These will last longer than wood and are mould resistant.

You can order the Sign Bracket and wall fittings without a sign if you wish. If you want a sign simply choose your sign size shape. We offer our 600 mm bracket with the following sign options.

Round: 500 mm Diameter.

Square: 500 x 500 mm.

Oval: 400 x 300 mm landscape.

Print Options

If you want us to print on your sign panel for you, please select the printed option.  Basic sign setup is free of charge on these items. If you need us to design your sign and / or logo please contact our sales team. Your sign will be printed with a high quality fade resistant waterproof UV ink for outdoor life. We provide a 5 year guarantee against fading though in reality these will last much longer.

Sign Attachments

This basically determines how your panel is attached to the frame.

Swing Limitation.

We have two options for this if required:

The swing limiter kit is a strong cable system which screws into the side of your sign and the wall and prevents the panel swinging too much. The tension you set it at will allow as much/little swing as you want.

The swing prevention bracket screws into the wall and base of your panel and eradicates swinging.

Corner Bracket Fitting Kit..Only select this if your pole is being place on the corner of a building. The pole will come out at an equal angle (135^o) to both surfaces.

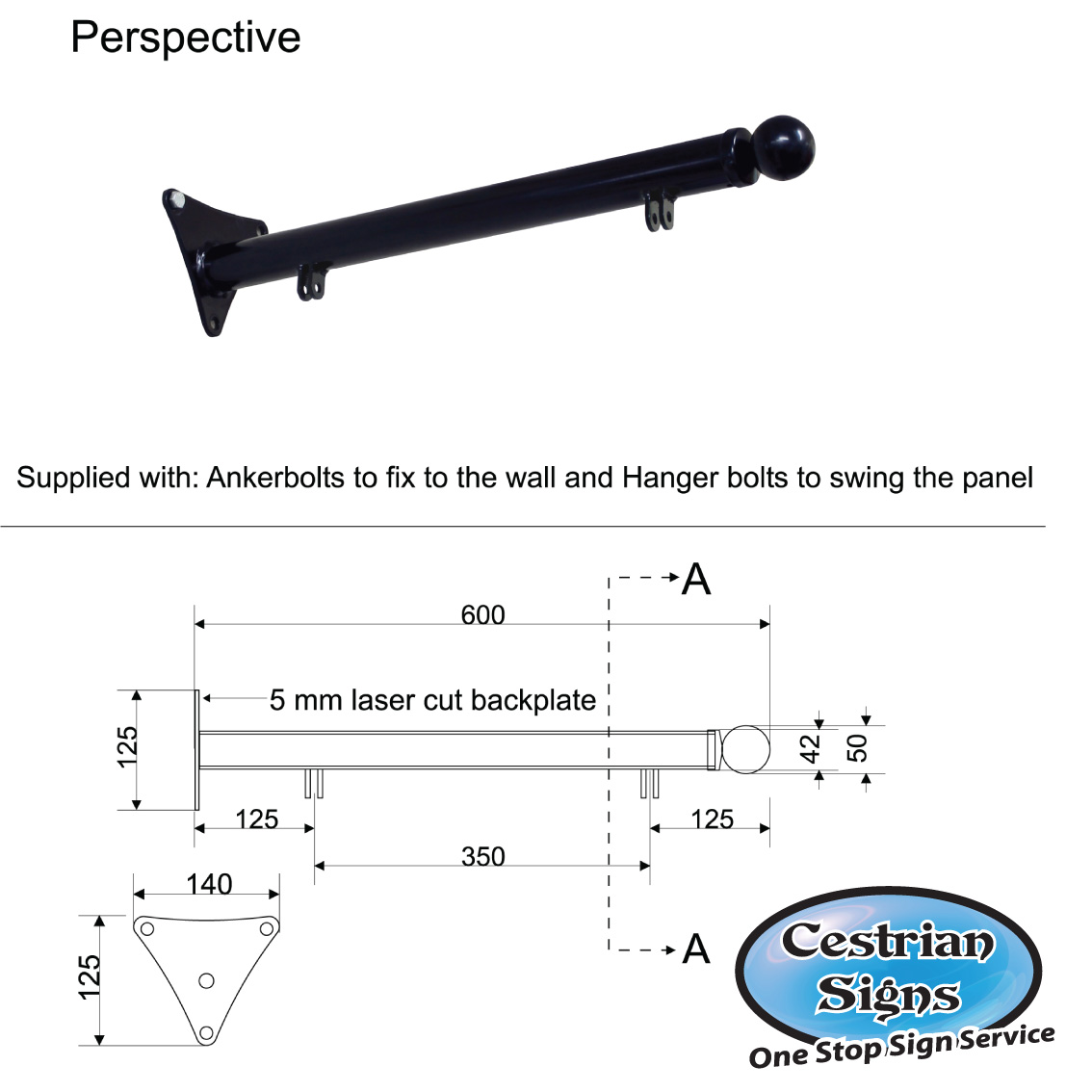

Specification of the projecting bracket:

• Manufactured from 40 mm diameter steel tube with 5 mm triangular steel wall fixing plate

• The metalwork is zinc’d and then powder coated for long outdoor life

• Supplied with M 10 x 75 mm Thunder bolt for wall fixing.

• Dimensions:- L 600 mm H 160 mm W 180 mm

• Hanging Eye centres:- 35 cm

• Weight 3 kg

• Our simplest projecting sign bracket, with a round shaft and a steel ball finial.

Maximum sign width:  500 mm Sign
